IP Camera

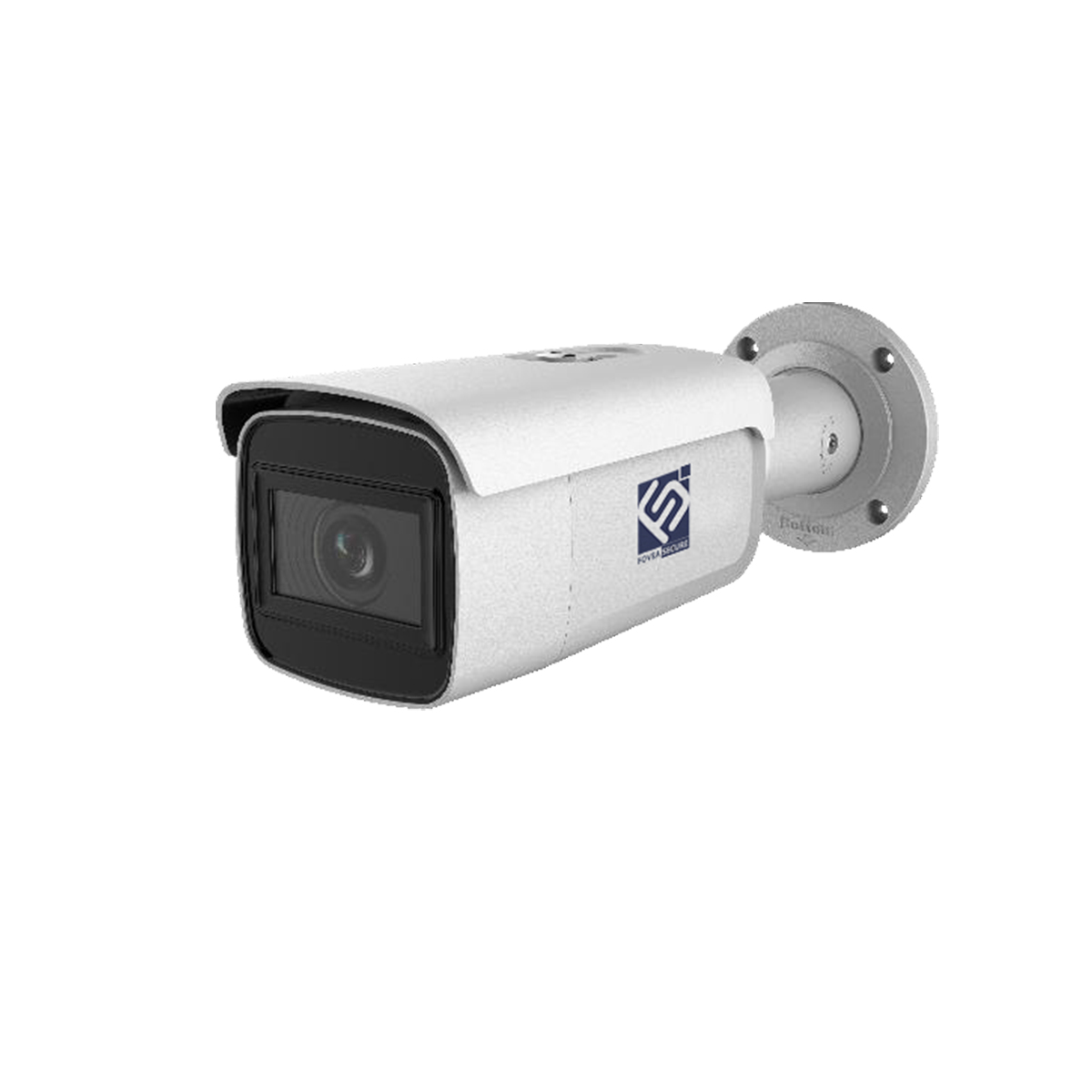

6 MP Outdoor IR Varifocal Bullet Camera

FV-BVB43P-RMA

Key Features

  • 1/2.9" (6 MP) Progressive Scan CMOS
  • 3072 x 2048 Resolution @ 30 fps
  • EXIR 2.0 Range Up to 165 ft (50 m)
  • 2.8 to 12 mm Motorized Varifocal Lens
  • H.265+, H.265, H.264+, H.264
  • 120dB True WDR
  • MicroSD Card Slot Supports 128 GB
  • IP67 Protection
  • Durable Metal Housing
  • 12 VDC and PoE+ (802.3at)
Specification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @ (f/1.2, AGC on), 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355
Lens
Focal length 2.8 to 12 mm motorized varifocal lens
Lens Type Motorized
Aperture F1.6
Focus Auto
FOV Horizontal FOV: 88° to 27°, Vertical FOV: 56° to 18°, Diagonal FOV: 110° to 33°
Lens Mount Φ14
IR
IR Range Up to 165 ft (50 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream and sub-stream support
H.265 Type Main Profile
H.265+ Main stream and sub-stream support
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 3072 × 2048
Main Stream 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream 30 fps (640 × 480, 640 × 360, 320 × 240
Third Stream 30 fps (640 × 480, 640 × 360, 320 × 240
Image Enhancement BLC, 3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping No
Day/Night Switch Day/night/auto/schedule/triggered by alarm in
Network
Network Storage MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
API ONVIF
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Web Browser Web Browser Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio (-S) 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound, terminal block
Communication Interface 1-port RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 input, 1 output (up to 12 VDC, 30 mA), terminal block
Video Output 1 Vp-p Composite Output(75Ω/BNC)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
Reset Button Yes
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2)
General
Operating Conditions -22° F to 140° F (-30° C to 60° C); humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, terminal block, PoE (802.3af, class 3
Power Consumption and Current 12 VDC, 1.2 A, maximum 14.5 W; PoE (802.3at, 37 V to 57 V), 0.43 A to 0.3 A, maximum 18 W
Protection Level IP67
Material Metal
Dimensions Φ 4.1" x 11.7" (Φ 105.1 mm x 297.5 mm)
Weight 2.80 lbs (1.285 kg)
